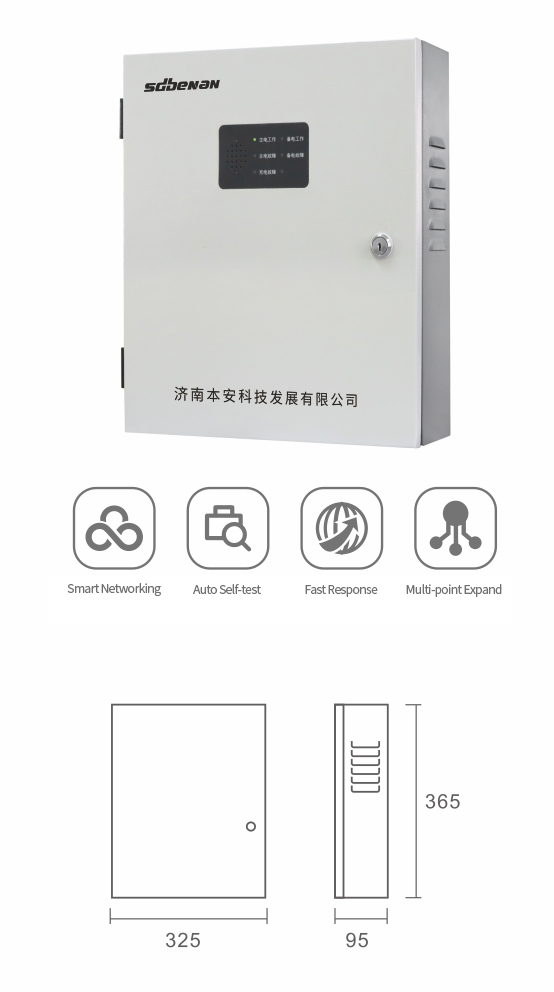

Model SSK-ZJQ-160 Fire Door Repeater fully complies with the requirements specified in GB29364-2012 Indicating and Control System for Fire Resistant Doorsets.It connects to matching devices via polarity-free two-wire M-BUS bus.Supports free wiring layout to simplify construction work.
| Operating Voltage | Main Power: AC220V ±15%, 50Hz ±1%; Backup Battery: 12.8V 23Ah |
| Output Loops | 1 loop |
| Signal Input | M-BUS |
| Signal Output | M-BUS |
| Output Power | 120W |
| Connection Cable | ≥RVS 2*2.5mm2(twisted pair cable) |
| Max. Signal Transmission Distance | ≤ 1000m |
| Operating Environment | Temperature： -10°C~55°C，Humidity：＜93%RH（non-condensing） |
| IP Rating | IP30 |
| Overall Dimensions | 325mm x 365mm x 95mm |
