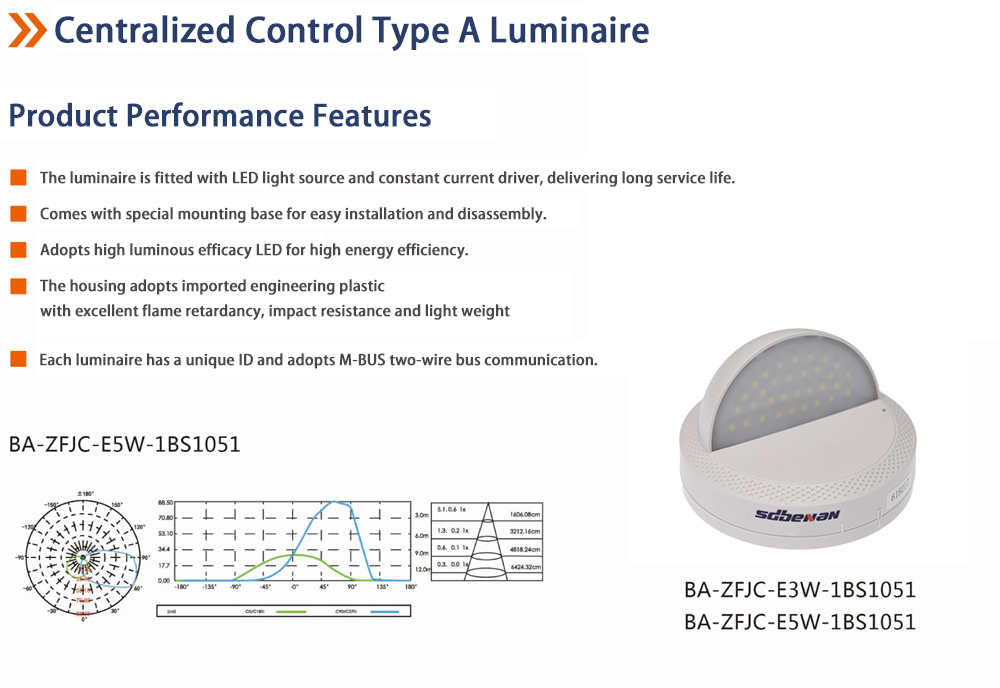

The luminaire adopts LED light source with constant current driver and long service life.
Equipped with a dedicated mounting base for easy installation and disassembly.
High luminous efficacy LED is used for superior energy efficiency.
The housing is made of imported engineering plastic, featuring excellent flame retardancy, impact resistance and lightweight design.
Each luminaire is assigned a unique ID and supports M-BUS two-wire bus communication.
| Technical Parameters of Central Power Supply Centralized Control Type A Sign Luminaire | ||
| Model No. | BA-ZFJC-E3(5)W-1BS1051 | BA-ZFZC-E3(5)W-1BS1051 |
| Product Dimension(Φ*H) | 118*80mm | |
| Mounting Dimension(mm) | 60mm | |
| Technical Parameters of Central Power Supply Centralized Control Type A Sign Luminaire | |
| Supply Voltage | DC18-36V |
| Rated Power | 3W / 5W |
| Communication Protocol | M-BUS |
| Mounting Type | Wall-mounted |
| IP Rating | IP30 |
| Human Body Sensor | None |
| Technical Parameters of Self-powered Centralized Control Type A Sign Luminaire | |
| Emergency Duration | 90min(Lithium Battery) |
