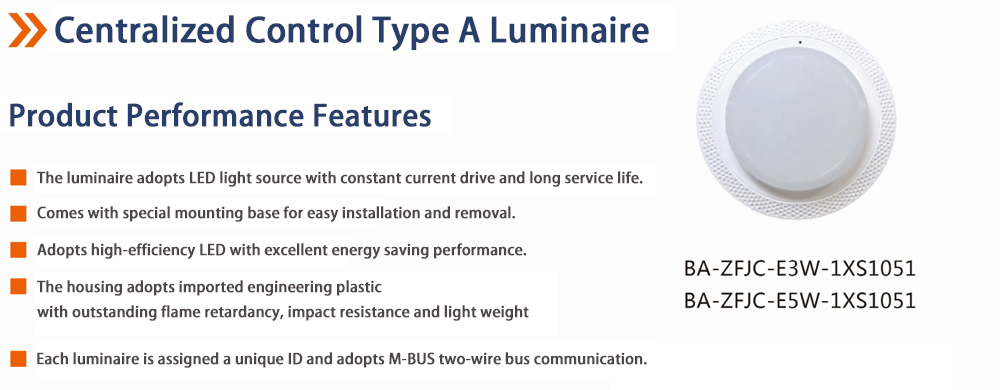

The luminaire adopts LED light source with constant current drive and long service life.
It is equipped with a dedicated mounting base for easy installation and disassembly.
High luminous efficiency LED is applied for outstanding energy-saving performance.
The housing is made of imported engineering plastic, featuring great flame retardancy, impact resistance and light weight.
Each luminaire is assigned a unique ID and supports M-BUS two-wire bus communication.
| Product Parameters | ||
| Model No. | BA-ZFJC-E3(5)W-1XS1051 | BA-ZFZC-E3(5)W-1XS1051 |
| Product Dimension(Φ*H) | 118*44mm | |
| Mounting Dimension(mm) | 66mm | |
| Technical Parameters of Central Power Supply & Centralized Control Type A Sign Luminaire | |
| Supply Voltage | DC18-36V |
| Rated Power | 3W / 5W |
| Communication Protocol | M-BUS |
| Mounting Type | Ceiling-mounted |
| IP Rating | IP30 |
| Human Body Sensor | None |
| Technical Parameters of Self-powered Centralized Control Type A Sign Luminaire | |
| Emergency Duration | 90min(Lithium Battery) |
