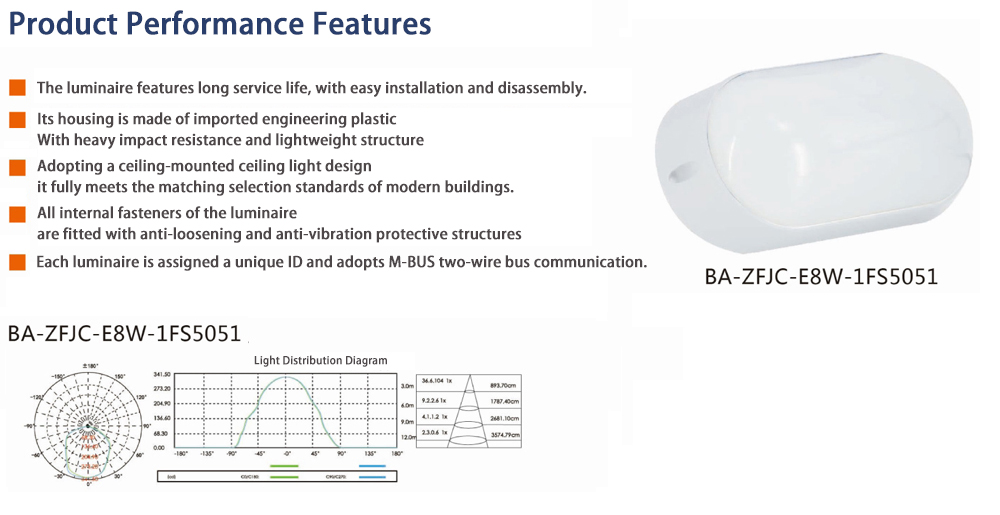

The luminaire has a long service life and is easy to install and remove.
Its housing is made of imported engineering plastic, which can withstand heavy impact and collision, with lighter weight.
Designed as a ceiling-mounted ceiling luminaire, it perfectly matches the selection standards of modern buildings.
All fasteners inside the luminaire are equipped with anti-loosening and anti-vibration structures.
Each luminaire is assigned a unique ID and supports M-BUS two-wire bus communication.
| Technical Specifications of Central Power Supply Centralized Control Type A Sign Luminaire | |
| Model No. | BA-ZFJC-E8W-1FS5051 |
| Product Dimension(H*L*W) | 220*100*60mm |
| Mounting Dimension(M) | 205mm |
| Supply Voltage | DC18-36V |
| Rated Power | 8W |
| Communication Protocol | M-BUS |
| Mounting Type | Ceiling-mounted |
| IP Rating | IP65 |
| Human Body Sensor | Eco Mode: Micro-light 40lm; Radar Sensor Mode: 800lm; Emergency Lighting Mode: 500lm |
| Technical Specifications of Self-powered Centralized Control Type A Sign Luminaire | |
| Model No. | BA-ZFZC-E8W-1FS5051 |
| Emergency Duration | 90min(Lithium Battery) |
