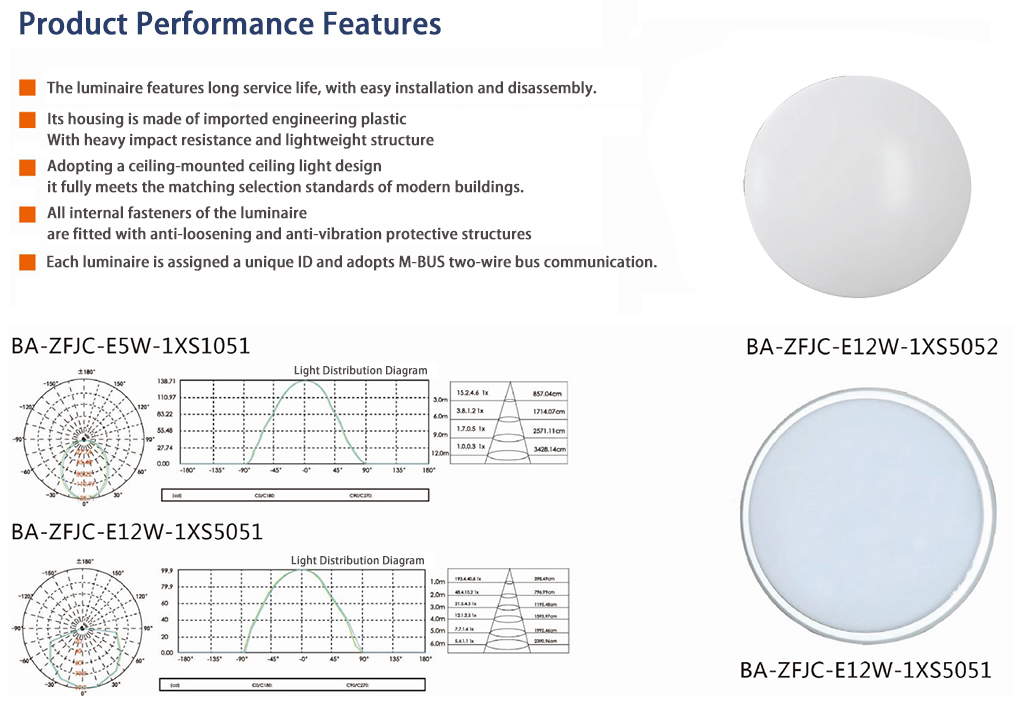

The luminaire has a long service life and is easy to install and remove.
Its housing is made of imported engineering plastic, which can withstand heavy impact and collision, with lighter weight.
Designed as a ceiling-mounted ceiling luminaire, it perfectly matches the selection standards of modern buildings.
All fasteners inside the luminaire are equipped with anti-loosening and anti-vibration structures.
Each luminaire is assigned a unique ID and supports M-BUS two-wire bus communication.
| Model No. | BA-ZFJC-E12W-1XS5052 | BA-ZFJC-E12W-1XS5051 |
| Supply Voltage | DC18-36V | |
| Rated Power | 12W | 12W |
| Communication Protocol | M-BUS | |
| Mounting Type | Ceiling-mounted | Ceiling-mounted / Wall-mounted |
| IP Rating | IP30 | IP65 |
| Product Dimension(H*L*W) | Φ 249*60mm | Φ 242*65mm |
| Mounting Dimension | 160mm | 53mm |
| Human Body Sensor | Eco Mode: Micro-light 40lm; Radar / PIR Sensor: 1000lm; Emergency Lighting: 800lm | Eco Mode: Micro-light 40lm; Radar / PIR Sensor: 1000lm; Emergency Lighting: 800lm |
| Central Power Supply Centralized Control Type A Luminaire | ||
| Model No. | BA-ZFJC-E12W-1XS5052 | BA-ZFJC-E12W-1XS5051 |
| Self-powered Centralized Control Type A Luminaire | ||
| Model No. | BA-ZFZC-E12W-1XS5052 | BA-ZFZC-E12W-1XS5051 |
| Emergency Duration | 2H/3H (Lithium Battery) | |
