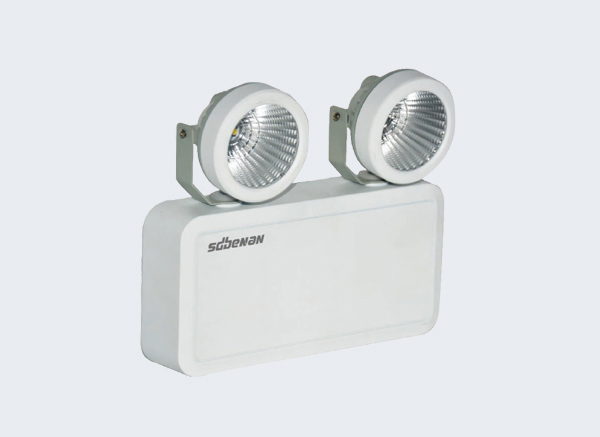

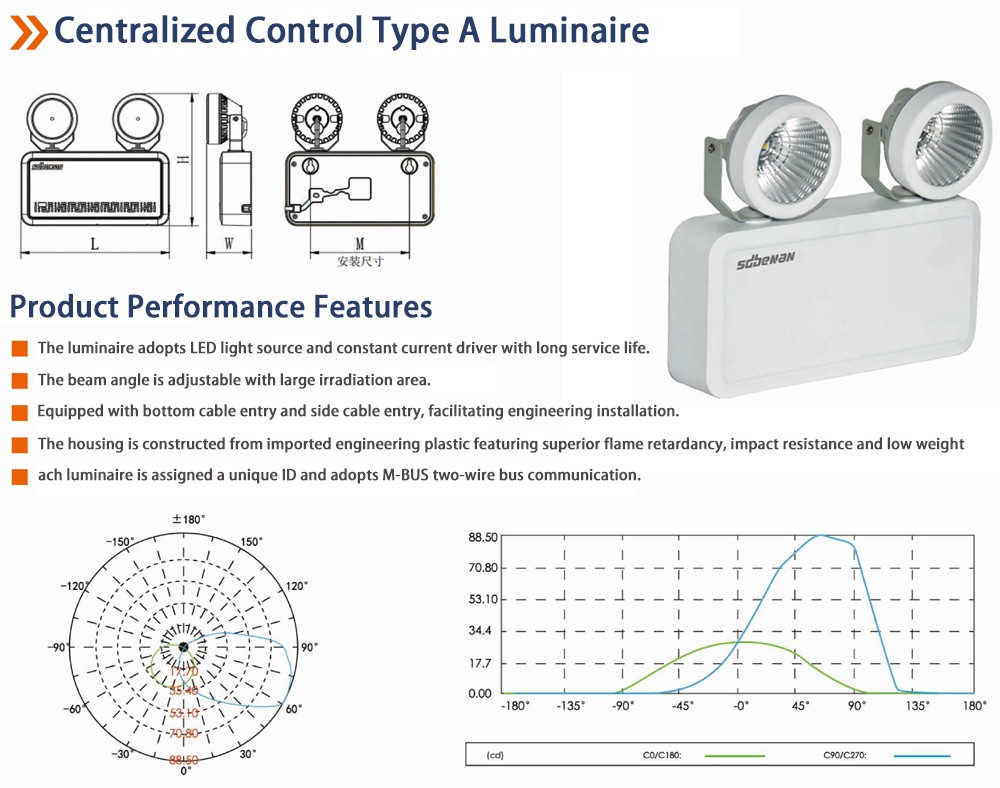

The luminaire adopts LED light source with constant current driver for long service life.
Adjustable light emission angle provides wide illumination area.
Available with bottom outlet and side outlet wiring for convenient engineering installation.
The housing is made of imported engineering plastic, featuring excellent flame retardancy, impact resistance and light weight.
Each luminaire is assigned a unique ID and supports M-BUS two-wire bus communication.
| Product Parameters | |
| Product Dimension(H*L*W) | 160*180*55mm |
| Mounting Dimension(mm) | 120mm |
| Technical Parameters of Central Power Supply Centralized Control Type A Emergency Sign Luminaire | |
| Model No. | BA-ZFJC-E4W-1BS1051 |
| Supply Voltage | DC18*36V |
| Rated Power | 4W |
| Communication Protocol | M-BUS |
| Mounting Type | Wall-mounted |
| IP Rating | IP30 |
| Technical Parameters of Self-powered Centralized Control Type A Sign Luminaire | |
| Model No. | BA-ZFZC-E4W-1BS1051 |
| Emergency Duration | 90min(Lithium Battery) |
