Detected Gas:Methane
Measuring Range:0-100%LEL
Alarm Set Value:10%LEL
Dimensions:100mm×100mm×38.5mm
Detected Gas:Methane
Measuring Range:0-100%LEL
Alarm Set Value:10%LEL
Dimensions:100mm×100mm×38.5mm
Product Description:

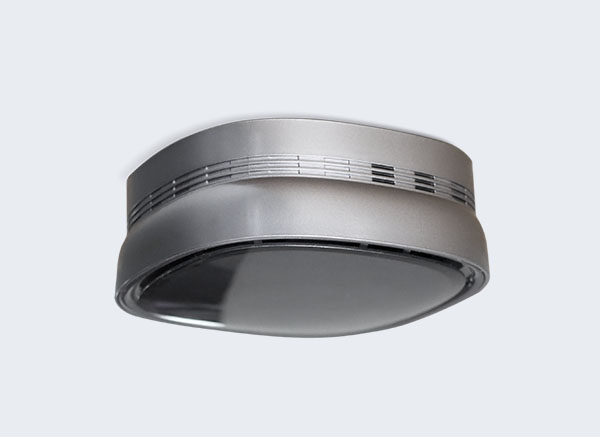

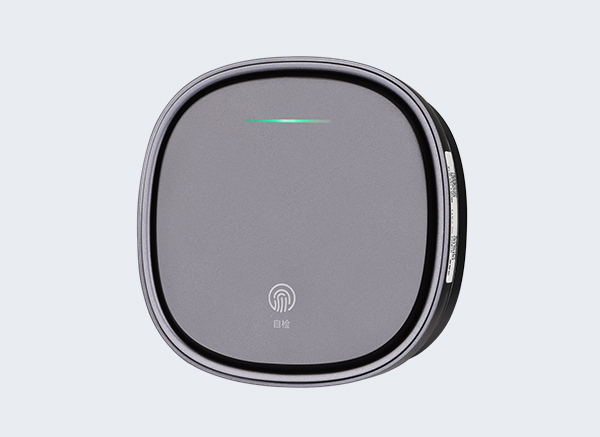

The JT-SSJ13W11-E type flammable gas detector is designed in accordance with the national standard GB15322.2-2019. It can detect the on-site gas concentration in real time and determine whether the gas concentration exceeds the alarm value. If the alarm value is exceeded, the device emits an audible and visual alarm signal, pushes alarm information via WeChat, platforms, APPs, etc., and can link with the emergency shut-off valve to cut off the gas source. It is suitable for leakage monitoring of indoor natural gas pipelines in households.
Product Features:
※ Advanced optoelectronic integration technology is adopted to achieve a miniaturized integrated package with high precision, high integration level and high reliability.
※ Intrinsically zero-drift-free, no external temperature compensation required, and linear output of concentration values.
※ Stable performance, high sensitivity, good anti-poisoning property, and strong anti-interference capability.
※ Different functions are indicated by high-brightness concentrated-light LEDs of different colors.
※ It adopts touch buttons, featuring sensitive operation and an attractive appearance.
※ The unique air flow channel and independent air chamber can better isolate oil fumes and dust, maintain smooth air flow, and extend the service life.
| Rated Voltage | AC 220V±15% |
| Output Interface | 2.4G Wireless Valve-Actuating Output (1 Group) |
| Alarm Set Value | 10%LEL |
| Detected Gas | Methane |
| Measuring Range | 0~100%LEL |
| Error | ±3%LEL |
| Alarm Method | Audible and Visual Alarm |
| Sampling Method | Natural Diffusion |
| Communication Method (Optional) | 4G-CAT1 |
| Operating Temperature | -10°C~55°C |
| Operating Humidity | ≤93%RH (No Condensation) |
| Overall Dimensions | 100mm×100mm×38.5mm |
| Material | ABS |
| Installation Method | Wall-mounted, Ceiling-mounted |
| Executive Standard | GB 15322.2-2019 |
