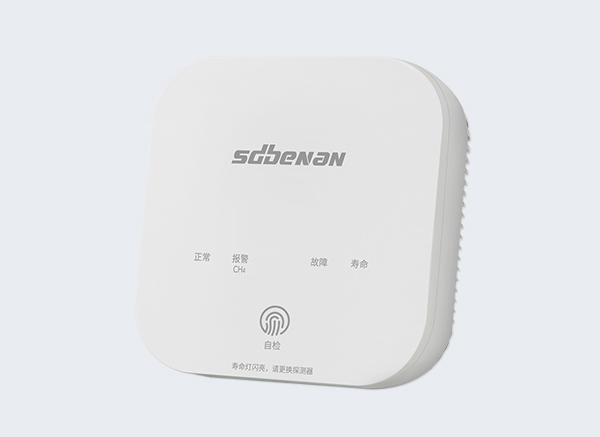

JT-SSJ15-BAT-E Household Combustible Gas Detector

Detected Gas:Methane, Carbon Monoxide

Operating Voltage:DC3.0V

Dimensions:90mm×90mm×24mm

Executive Standard:GB 15322.2-2019


Product Details
Specs & Params
Related Products

Product Overview:

JT-SSJ15-BAT-E Household Combustible Gas Detector can detect on-site gas concentration in real time and determine whether it exceeds the alarm threshold. When the concentration exceeds the limit, the device activates sound and light alarms, and pushes alarm alerts via WeChat, cloud platform and mobile APP. It is suitable for leakage monitoring of natural gas pipelines in household indoor environments.


Product Features:

※ Adopts imported sensor with high integration and superior reliability, featuring linear concentration output, high sensitivity and strong resistance to poisoning and interference.

 ※ Powered by lithium battery with ultra-long standby duration.

 ※ High-brightness focused LED indicators display device status in different colors.

 ※ Supports wireless valve closing function with low power consumption, easy for operation and maintenance.

 ※ Remote alarm available. Easy binding with mobile phones for instant alarm push via WeChat.

 ※ Adopts exclusive air flow channel and independent air chamber structure, which effectively isolates oil fume and dust, ensures smooth air circulation and prolongs service life.


Operating VoltageDC 3.0 V
Output InterfaceOne group of 2.4G wireless output
Alarm Setpoint8%LEL
Detected Gases

Methane

Measuring Range0~16%LEL
Measuring Error±3%LEL
Alarm ModeAudible and visual alarm
Sampling MethodNatural Diffusion
Communication Method4G-CAT1
Operating Temperature-10°C~55°C
Operating Humidity≤93%RH (non-condensing)
Dimensions90mm×90mm×24mm
MaterialABS
Installation MethodWall-mounted / Ceiling-mounted
Executive StandardGB 15322.2-2019
