Detected Gas：Methane, Carbon Monoxide
Operating Voltage：DC3.0V
Dimensions：90mm×90mm×24mm
Executive Standard：GB 15322.2-2019
Detected Gas：Methane, Carbon Monoxide
Operating Voltage：DC3.0V
Dimensions：90mm×90mm×24mm
Executive Standard：GB 15322.2-2019
Product Description：

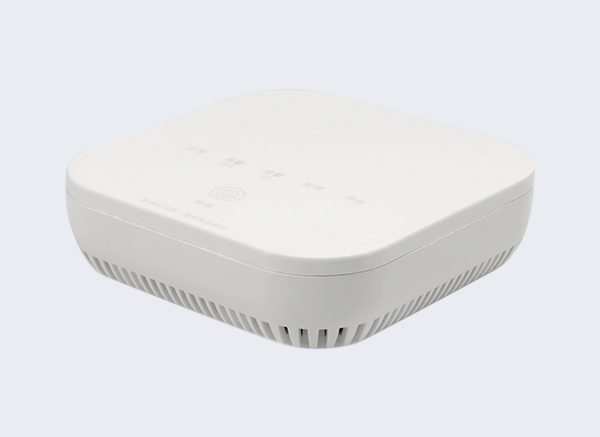

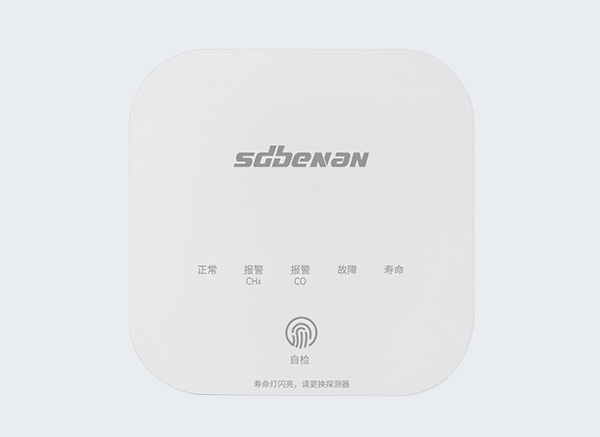

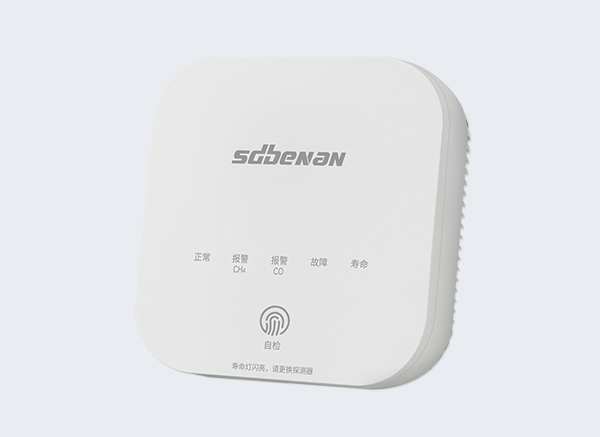

The JTM-SSJ15-BAT-E household combustible gas detector can detect on‑site gas concentration in real time and determine whether it exceeds the alarm threshold. When the concentration exceeds the alarm threshold, the device outputs an audible and visual alarm signal and sends alarm notifications via WeChat, monitoring platform, and mobile APP. This product is suitable for residential monitoring of methane and carbon monoxide in household applications.
Product Features：
※ High‑integrity imported sensor and strong reliability, excellent anti‑poisoning and anti‑interference performance.
※ Built‑in lithium battery with long service life.
※ High‑brightness LED indicators, displaying device status in different colors.
※ Wireless valve control, low power consumption, and simple operation and maintenance.
※ Realizes remote alarm. Easy mobile phone binding, with alarm information pushed timely via WeChat.
※ Optimized air channel and independent gas chamber, effectively isolating oil fumes and dust, maintaining smooth air flow and extending service life.
| Operating Voltage | DC 3.0 V |
| Output Interface | 1×2.4G Wireless Output |
| Alarm Setpoint | CH₄: 8%LEL, CO: 200×10⁻⁶ (volume fraction) |
| Detected Gases | Methane, Carbon Monoxide |
| Measuring Range | CH₄: 0～16%LEL, CO: (0–1000)×10⁻⁶ (volume fraction) |
| Error | CH₄: ±3%LEL, CO: ±50×10⁻⁶ (volume fraction) |
| Alarm Mode | Audible and visual alarm |
| Sampling Method | Natural Diffusion |
| Communication Method | 4G-CAT1 |
| Operating Temperature | -10°C~55°C |
| Operating Humidity | ≤93%RH (non-condensing) |
| Dimensions | 90mm×90mm×24mm |
| Material | ABS |
| Installation Method | Wall-mounted / Ceiling-mounted |
| Executive Standard | GB 15322.2-2019 |
